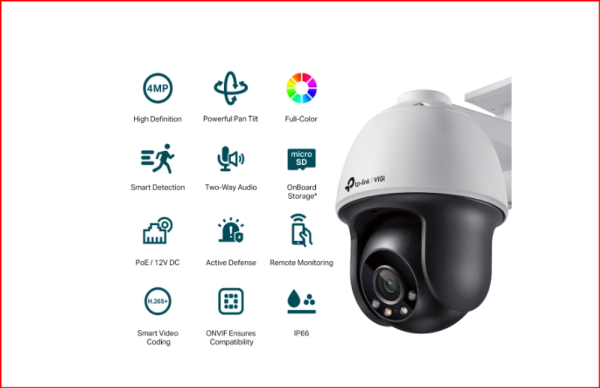

TP Link VIGI C540 4MP Outdoor Full-Color Pan Tilt Network Camera
TP Link VIGI C540 4MP Outdoor Full-Color Pan Tilt Network Camera
M.R.P :
₹ 16,999
₹ 9,360
0 % OFF
₹
9,360
Inclusive of all taxes
Only 2 left in stock!
Quantity
Add to Cart
Buy Now
Share :
SKU: C540
Product Description
Camera Specifications
Camera
Image Sensor:
1/1.79” Progressive Scan CMOS
Shutter Speed:
1/3 to 1/10000 s
Slow Shutter:
Yes
Minimum Illumination:
0.0005 Lux; 0 Lux with White Light
Day/Night Mechanism:
N/A
Day/Night Switch:
Unified/Scheduled/Auto
Lens
Type:
Fixed Focal Lens
Focal Length:
4 mm
Aperture:
F1.0±5%
FOV:
4mm: Horizontal FOV: 104°, Vertical FOV: 55°, Diagonal FOV: 127°
Lens Mount:
M16*P 0.5
DORI Distance:
4 mm: Detect: 63 m (207 ft), Observe: 26 m (86 ft), Recognize: 13m (41 ft), Identify: 6 m (21 ft)
PTZ
Pan/Tilt Range:
Pan: 0° to 348°, Tilt: 0° to 105°
Pan/Tilt Speed:
Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s; Tilt Speed: Configurable from 8° to 44°/s, Preset Speed: 44°/s
Manual Control Speed:
Configurable from 8° to 35°/s
Presets:
300
Patrol Scan:
8 patrols, up to 8 presets for each patrol
Power-off Memory:
Yes; Auto restore to previous PTZ and lens status after power failure
Park Action:
Yes; Preset; Patrol Scan
3D Positioning:
Yes
Angle Adjustment (Manual):
Pan: 0° to 348°, Tilt: 0° to 105°
Illuminator
IR LED:
N/A
White LED:
Quantity: 2; Range: 30m
Illuminator On/Off Control:
Auto/Scheduled/Always on/Always off
Video
Max. Resolution:
2688 x 1520
Main Stream: Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Main Stream: Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream: Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Sub-Stream: Resolution:
704x576, 640x480, 352x288, 320x240
Bit Rate Control:
CBR, VBR
Video Compression: Main Stream:
H.265+/H.265/H.264+/H.264
Video Compression: Sub-Stream:
H.265/H.264
H.264 Type:
Main Profile/High Profile
H.264+:
Main Stream Supported
H.265 Type:
Main Profile
H.265+:
Main Stream Supported
Video Bit Rate: Main Stream:
256 Kbps to 6 Mbps
Video Bit Rate: Sub-Stream:
64 Kbps to 512 Kbps
Image Settings:
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement:
BLC/3D DNR/HLC
Wide Dynamic Range:
120dB
SNR:
≥ 52 dB
Image Parameters Switch:
Yes
Privacy Mask:
Up to 4 Masks
ROI:
1 Region
OSD Setting:
Yes
Audio
Audio Compression:
G.711a/G.711u/G.722/G.726/AAC-LC
Audio Bit Rate:
64 Kbps/16 Kbps
Two-Way Audio:
Supported
Network
Network Protocol:
TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, PPPOE, SMTP, DNS, DDNS, NTP, UPnP, RTSP, ONVIF, ISAPI
Network Interface:
1 x RJ45 10M/100M/1000M Ethernet Port
Network Transmission:
H.265+/H.265/H.264+/H.264
POE:
802.3af
Power
Power Supply:
DC 12V ± 25%
Power Consumption:
≤ 7 W
POE:
802.3af
Environmental
Operating Temperature:
-30°C to +60°C (22°F to 140°F)
Storage Temperature:
-40°C to +60°C (-40°F to 140°F)
Humidity:
95% or less (non-condensing)
Mechanical
Material:
Metal + Plastic
Dimensions:
240 × 85 × 85 mm (9.45 × 3.35 × 3.35 in)
Weight:
Approx. 1.2 kg (2.65 lbs)
Mounting:
Wall Mount, Ceiling Mount
Certifications
Certifications:
CE, FCC, RoHS
Additional Information
Product Information:
For more details, visit the support page.
Note:
This function must be used with VIGI specified software.
Micro SD Card:
Not included in the package.
Night Vision Image:
Captured by VIGI C340S.
Comparison:
This value is compared with the traditional F2.0 aperture, 1/3" target surface sensor.
Laboratory Testing:
Calculations based on laboratory testing using VIGI cameras. Actual performance may vary.
