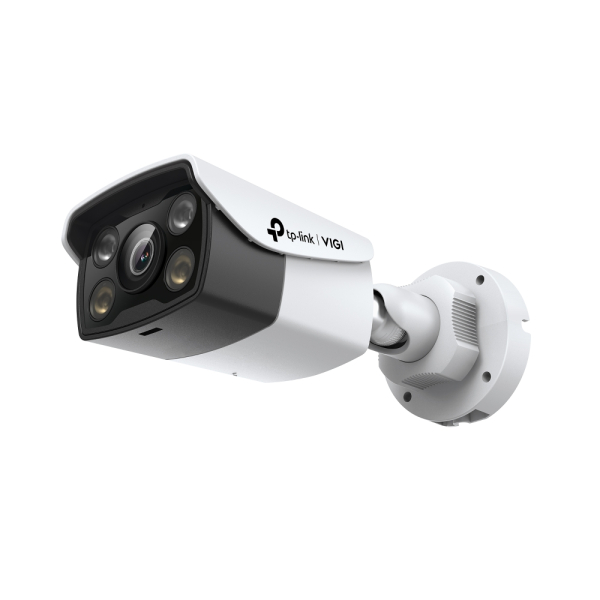

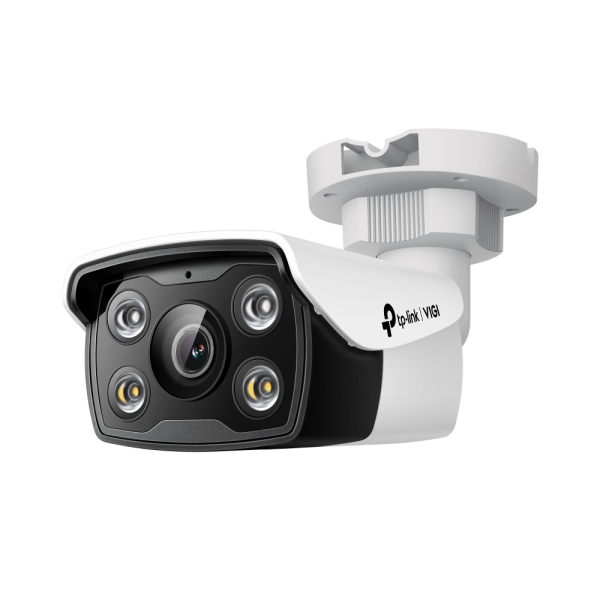

TP Link VIGI 3MP-4MM Outdoor Full-Color Bullet Network Camera

M.R.P : ₹ 5,200

₹

Inclusive of all taxes

Only 41 left in stock!

Quantity

Buy Now

Add To Wishlist

Add To Compare

SKU: VIGI-C330-4MM
3MP Super-High Definition and 24h Full-Color
Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Built-In Microphone
IP67 Waterproof
H.265+ Compression Technology

Camera Specifications

Camera

Image Sensor: 1/2.8” Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Unified / Scheduled / Auto

Lens

Type: Fixed Focal Lens
Focal Length: 2.8 / 4 / 6 mm
Aperture: F1.6
FOV:
- 2.8 mm:
  - Horizontal FOV: 107.5°
  - Vertical FOV: 57.2°
  - Diagonal FOV: 128.7°
- 4 mm:
  - Horizontal FOV: 84.4°
  - Vertical FOV: 44.3°
  - Diagonal FOV: 100.6°
- 6 mm:
  - Horizontal FOV: 55.1°
  - Vertical FOV: 30.2°
  - Diagonal FOV: 64°
Lens Mount: M12
DORI Distance:
- 2.8 mm:
  - Detect: 52 m (170 ft)
  - Observe: 22 m (71 ft)
  - Recognize: 10 m (34 ft)
  - Identify: 5 m (17 ft)
- 4 mm:
  - Detect: 70 m (230 ft)
  - Observe: 29 m (96 ft)
  - Recognize: 14 m (46 ft)
  - Identify: 7 m (23 ft)
- 6 mm:
  - Detect: 100 m (327 ft)
  - Observe: 41 m (136 ft)
  - Recognize: 20 m (65 ft)
  - Identify: 10 m (33 ft)
Angle Adjustment (Manual):
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotation: 0° to 360°

Illuminator

IR LED:
- Quantity: 2
- Range: 30m
- Wavelength: 850nm
White LED:
- Quantity: 2
- Range: 30m
Illuminator On/Off Control: Auto / Scheduled / Always on / Always off

Video

Max. Resolution: 2304 × 1296
Main Stream:
- Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- Resolution:
  - 2304x1296
  - 2048x1280
  - 1920x1080
  - 1280x720
- Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream:
- Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- Resolution:
  - 704x576
  - 640x480
  - 352x288
  - 320x240
- Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control: CBR, VBR
Video Compression:
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264
H.264 Type: High Profile
H.264+: Main Stream Supported
H.265 Type: Main Profile
H.265+: Main Stream Supported
Video Bit Rate:
- Main Stream: 256 Kbps to 4 Mbps
- Sub-Stream: 64 Kbps to 512 Kbps


Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)
Image Enhancement: BLC / 3D DNR / HLC / SmartIR
Wide Dynamic Range: DWDR
SNR: ≥ 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes

Audio

Audio Communication: N/A
Audio Input: Yes
Audio Output: N/A
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps (G.711 alaw)

Network

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF: Yes
API: Open Network Video Interface (Profile S)
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, Web UI
Web Browser: Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above
Cloud: Yes
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Alarm and Event Management

Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Abnormal Sound Detection, People Detection, Vehicle Detection
Basic Event: Motion Detection, Video Tampering Detection, Exception (Illegal Login)
Alarm Linkage: White Light Flashing, Message Push
Linkage Method: N/A
Output Notification: Message Push

Interfaces

Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm: N/A
Reset Button: N/A
Power: DC Power Port
On-board Storage: N/A
Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker: N/A

General

Operating Temperature: -30–60 °C
Storage Temperature: -40–60 °C
Operating Humidity: 95% or Less (Non-Condensing)
Storage Humidity: 95% or Less (Non-Condensing)
Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories
Material: Plastic
Net Weight: 0.32 Kg
Gross Weight: 0.48 Kg
Power Supply: 12V DC ± 5%, Max. 5.5 W, 5.5mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 6 W
Protection: IP67 Waterproof
Product Dimensions (L x W x H): 78.5 × 188.0 × 71.5 mm (3.09 × 7.40 × 2.81 in)
Certifications: CE, NTRA, VCCI, BSMI
