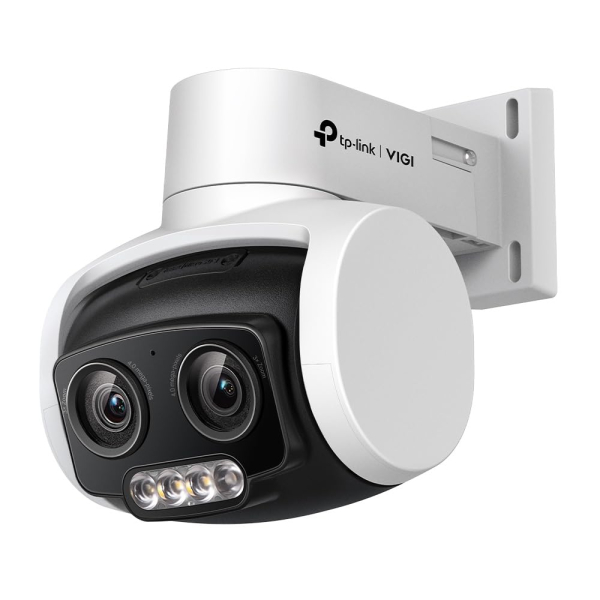

TP Link VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera
M.R.P : ₹ 12,999
₹
6,960
Exclusive of all taxes
Only 6 left in stock!
Quantity
VIGI-C540V
Product Description
Camera Specifications
| Feature | Details |
|---|---|
| Image Sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/white light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Day/Night/Auto/Schedule-Switch |
| Zoom | 3x Mixed Zoom |
Lens
| Feature | Details |
|---|---|
| Focal Length | 4-12 mm (Mixed Zoom) |
| Aperture | F1.6 |
| Field of View (FOV) | Diagonal: 100°, Horizontal: 84°, Vertical: 46° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | Detect: 80-150 m, Observe: 33-63 m, Recognize: 16-30 m, Identify: 8-15 m |
PTZ (Pan-Tilt-Zoom)
| Feature | Details |
|---|---|
| Pan/Tilt Range | Pan: 0° to 332°, Tilt: 0° to 120° |
| Pan/Tilt Speed | Pan: 1° to 55°/s, Tilt: 1° to 40°/s |
| Manual Control Speed | 8° to 35°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, 8 presets per patrol |
| Power-off Memory | Yes |
| 3D Positioning | Yes |
Illuminator
| Feature | Details |
|---|---|
| IR LED | Quantity: 1, Range: 30m, Wavelength: 850nm |
| White LED | Quantity: 3, Range: 30m |
| Illuminator Control | Auto/Scheduled/Always on/Always off |
Video
| Feature | Details |
|---|---|
| Max. Resolution | 2560 x 1440 |
| Main Stream Frame Rate | Up to 30fps |
| Sub-Stream Frame Rate | Up to 30fps |
| Bit Rate Control | CBR, VBR |
| Compression | H.265+/H.265/H.264+/H.264 |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| Privacy Mask | Up to 4 Masks |
Audio
| Feature | Details |
|---|---|
| Two-Way Audio | Yes |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Noise Filtering | Yes |
Network
| Feature | Details |
|---|---|
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS |
| ONVIF | Yes |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Security | Password Protection, HTTPS Encryption, IP Address Filter |
Alarm & Event Management
| Feature | Details |
|---|---|
| Smart Events | Human & Vehicle Classification, Area Intrusion, Line-Crossing, Object Detection |
| Basic Events | Motion Detection, Video Tampering, Illegal Login |
| Alarm Linkage | Memory Card Recording, Message Push, Audible Warning, White Light Flashing |
Interfaces
| Feature | Details |
|---|---|
| Network Interface | 1 RJ45 10/100M Ethernet Port, PoE |
| Reset Button | Yes |
| Power | DC Power Port |
| Storage | MicroSD Card Slot (up to 256 GB) |
General
| Feature | Details |
|---|---|
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Material | Plastic |
| Net Weight | 0.43 Kg |
| Power Supply | 12V DC ± 5%, PoE (802.3at, class 4) |
| Max. Power Consumption | 14 W |
| Protection | IP66 |
| Product Dimensions | 107 x 136 x 139 mm |
| Certifications | CE, EAC, UKCA, RCM, BSMI, VCCI, FCC, IC |
